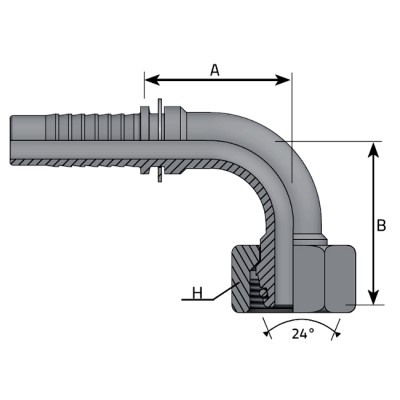

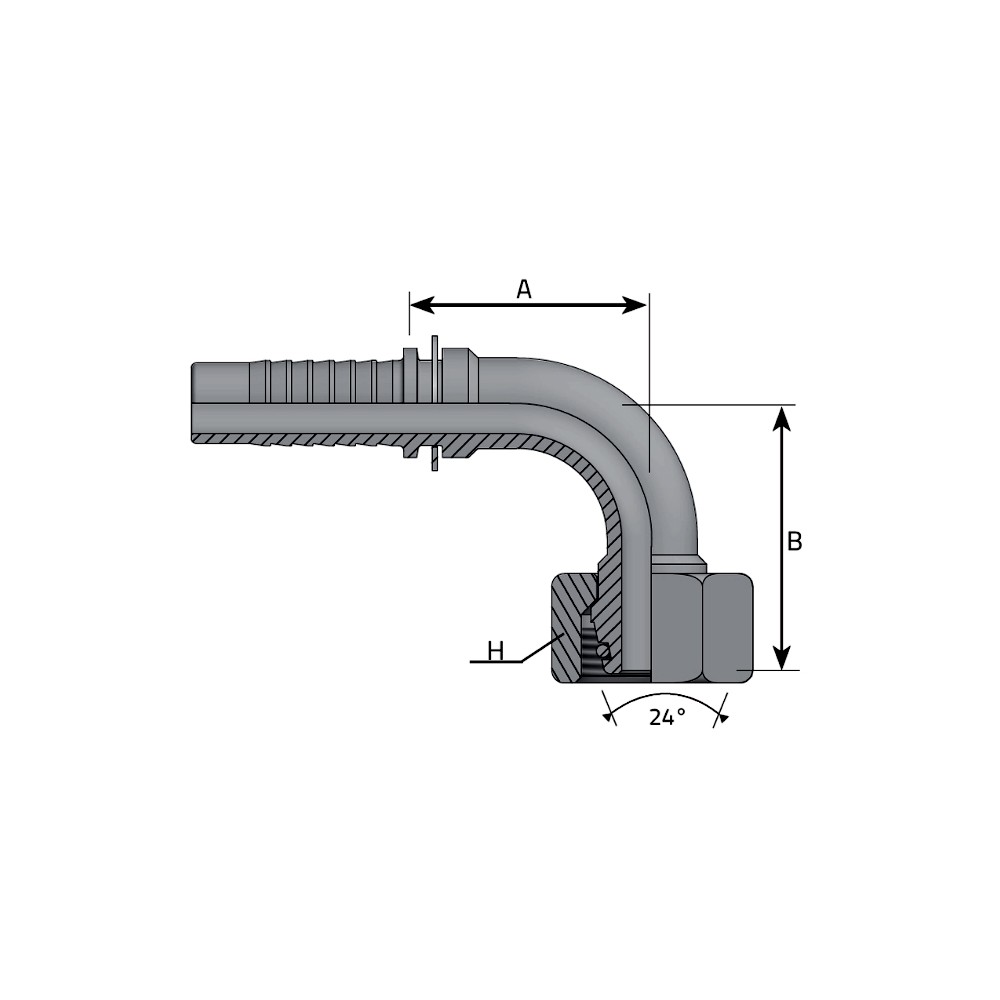

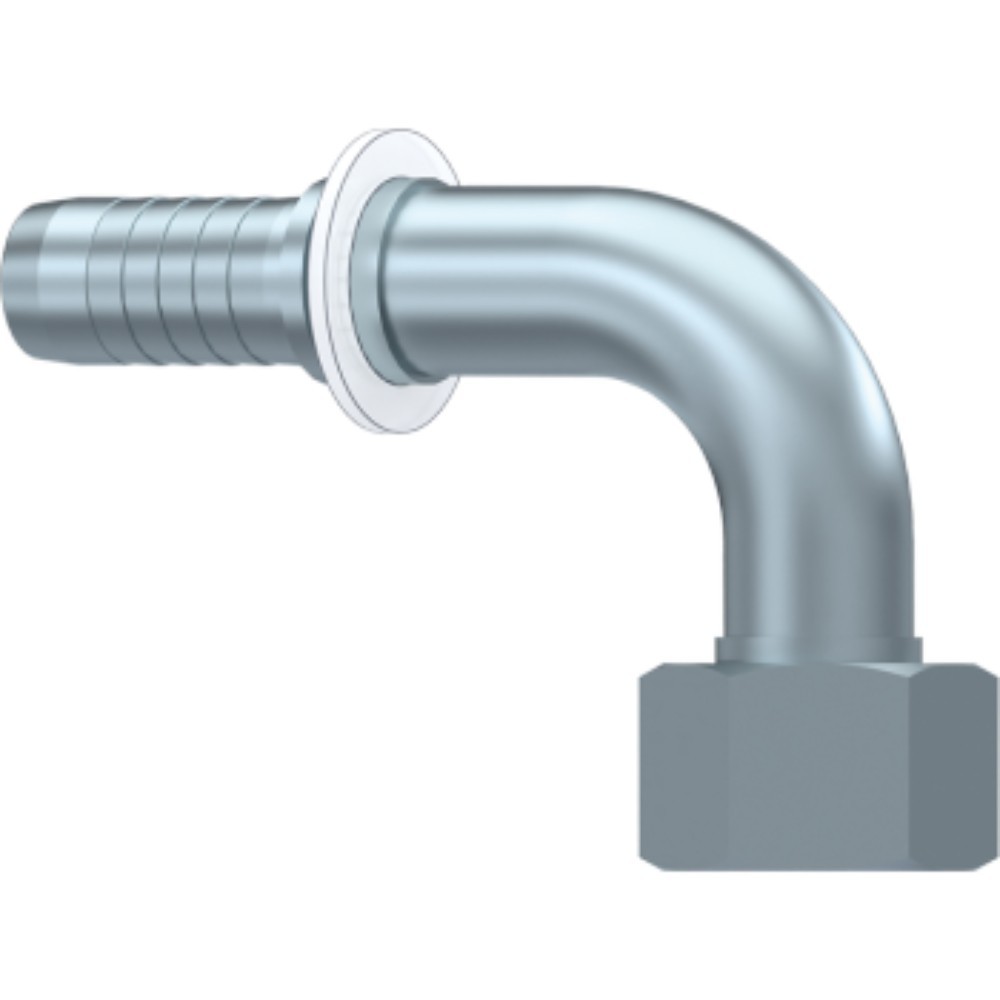

Codo 90º Prensar 24º Serie L (mm) VITILLO

Hembra Giratoria a 90º Métrica Con O-Ring Cono 24º Serie L. *** Refs. 06332-04-16, 06332-05-14, 06332-06-16,06332-08-18 con Tuerca prensada.

Ref.	Ref. Vitillo	D.N.	A	B	P. Trabajo (bar)	Diametro	Hexágono	Para Manguera	Rosca
06332-03-12	F90E0312L6	5	29,5	31,5	250	6 mm	14	3/16	M 12
06332-03-14	F90E0314L8	5	29,5	31,5	250	8 mm	17	3/16	M 14
06332-04-12	F90E0412L6	6	29,5	31,5	250	6 mm	17	1/4	M 12
06332-04-14	F90E0414L8	6	29,5	31,5	250	8 mm	17	1/4	M 14
06332-04-16	F90E0416L10	6	29	32,5	250	10 mm	19	1/4	M 16
06332-04-18	F90E0418L12	6	27	30,5	250	12 mm	22	1/4	M 18
06332-05-14	F90E0514L8	8	31,5	36,7	250	8 mm	19	5/16	M 14
06332-05-16	F90E0516L10	8	31	32,5	250	10 mm	19	5/16	M 16
06332-05-18	F90E0518L12	8	29	37	250	12 mm	22	5/16	M 18
06332-06-16	F90E0616L10	10	33	38	250	10 mm	19	3/8	M 16
06332-06-18	F90E0618L12	10	35,5	37,5	250	12 mm	22	3/8	M 18
06332-06-22	F90E0622L15	10	34	42	250	15 mm	27	3/8	M 22
06332-08-18	F90E0818L12	13	39	49	250	12 mm	22	1/2	M 18
06332-08-22	F90E0822L15	13	39,5	44	250	15 mm	27	1/2	M 22
06332-08-26	F90E0822L15	13	39,5	46,5	160	18 mm	32	1/2	M 26
06332-10-26	F90E1026L18	16	48,5	50,5 mm	160	18 mm	32	5/8	M 26
06332-10-30	F90E1030L22	16	48,5	53 mm	160	22 mm	36	5/8	M 30
06332-12-26	F90E1226L18	20	53,5 mm	63,5 mm	160	18 mm	32	3/4	M 26
06332-12-30	F90E1230L22	20	56,5 mm	55,5 mm	160	22 mm	36	3/4	M 30
06332-16-36	F90E1636L28	25	73 mm	72,5 mm	100	28 mm	41	1	M 36
06332-20-45	F90E2045L35	32	92 mm	86,5 mm	100	35 mm	50 mm	1 1/4	M 42
06332-24-52	F90E2452L42	38	99 mm	94 mm	100	42 mm	60 mm	1 1/2	M 52
